SG (B) 10 and SG (B) 11 non-encapsulated dry type transformer
-
Level H insulation: the insulation endurance class of dry type transformer includes F, H and C. The product takes the DuPont NOMEX paper as the main insulating material, the insulation grade is up to H, and the insulation grade of key part is up to C.
Safety: all insulating materials of the product are not combustion-supporting, self-extinguishing and non-toxic, and there is hardly poisonous smoke after burning under 800℃ for a long time;
Reliability: excellent three-proofs performance (damp-proof, anti-poison and salt-spray proof), able to undertake heat shock and free of crack.
Environment protection: no environmental pollution during manufacturing, transportation, storage and operation, and able to be decomposed or recycled after the service life is expired.
Strong overload capacity: strong overload capacity, fast cooling, and work safely and reliably under 130% overload for a long time.
-
The product is widely applied to power transmission and transformation system, hotel, rAreas with high fire prevention requirement, large load fluctuation, frequent overload operation and densely-populated areas, especially the high-rise buildings, airports, stations, wharfs, metros, hospitals, power generation plants, metallurgy industry, shopping mall, densely-populated and petrochemical industry, nuclear power plants and military project, and the areas with high environmental protection requirements such as water source and reservoir.
Product Details
DOWNLOAD
-

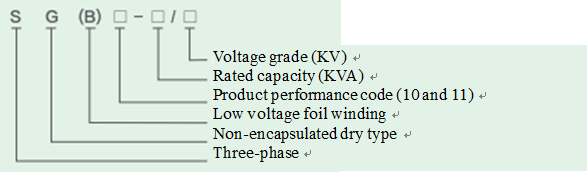

Model Description
-
Features -
Level H insulation: the insulation endurance class of dry type transformer includes F, H and C. The product takes the DuPont NOMEX paper as the main insulating material, the insulation grade is up to H, and the insulation grade of key part is up to C.
-
Safety: all insulating materials of the product are not combustion-supporting, self-extinguishing and non-toxic, and there is hardly poisonous smoke after burning under 800℃ for a long time;
Reliability: excellent three-proofs performance (damp-proof, anti-poison and salt-spray proof), able to undertake heat shock and free of crack.
Environment protection: no environmental pollution during manufacturing, transportation, storage and operation, and able to be decomposed or recycled after the service life is expired.
Strong overload capacity: strong overload capacity, fast cooling, and work safely and reliably under 130% overload for a long time.
Conditions of Use -
Altitude: ≤1,000m; -25℃≤ambient temperature≤40℃, indoor type. Keep well-ventilated for the transformer with air self-cooling and forced air cooling type. When the transformer is installed in basement or other environments with poor ventilation condition, increase cooling and ventilation device. Protection grade: IP00, IP20 and IP23.
-
When the altitude is＞1,000m or the ambient temperature is higher than 40℃ or lower than -25℃, adjust the rated value of product according to the requirements of GB1094.11 Power transformers-Part 11: Dry-type transformers.
-
Technical Parameters
-
-
Technical parameters of SG(B)10-30～2500/10 series non-encapsulated dry type transformer
Rated capacity kVA
Voltage combinations (kV)
Grade mark of connection group
No-load loss (W)
Load loss (W)
Short-circuit impedance (%)
High voltage (kV)
Tap (%)
Low voltage (kV)
30
6 6.3 6.6 10 10.5 11
±2.5
±5
0.4
Dyn11 Yyn0
190
760
4.0
50
270
1070
80
370
1480
100
400
1690
125
470
1980
160
540
2280
200
±5 ±2×2.5
620
2710
250
720
2960
315
880
3730
400
980
4280
500
1160
5230
630
1340
6290
630
1300
6400
6.0
800
1520
7460
1000
1770
8760
1250
2090
10300
1600
2450
12500
2000
3050
15500
2500
3600
18400
-
Technical parameters of SC(B)12-30～2500/10 series resin pouring distribution transformer
Rated capacity kVA
Voltage combinations (kV)
Grade mark of connection group
No-load loss (W)
Load loss (W)
Short-circuit impedance (%)
High voltage (kV)
Tap (%)
Low voltage (kV)
30
6 6.3 6.6 10 10.5 11
±2.5
±5
0.4
Dyn11 Yyn0
170
760
4.0
50
240
1070
80
330
1480
100
360
1690
125
420
1980
160
480
2280
200
±5 ±2×2.5
550
2710
250
640
2960
315
790
3730
400
880
4280
500
1040
5230
630
1200
6290
630
1170
6400
6.0
800
1360
7460
1000
1590
8760
1250
1880
10300
1600
2200
12500
2000
2740
15500
2500
3240
18400
